Category: Aluminium Geometry Cutters
Aluminium Geometry Cutters
Showing 1–16 of 27 results
-

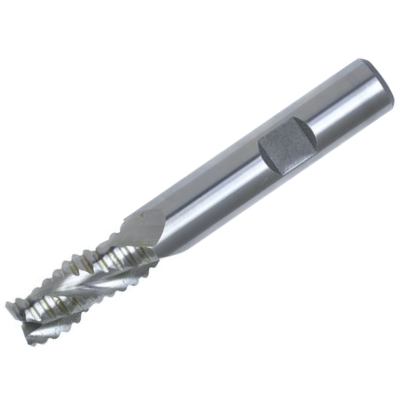

10.0 37DEG HIGH HELIX 3FL ROUGH E/MILL-ALUMRead moreSwissTech HSS-CO 8% Weldon Shank Coarse Pitch 37° High Helix for Aluminium Roughing End Mills 3 Flute: Series 20, Regular – Uncoated
Series 20 – Regular Length
Dimensions to DIN 844. Centre cutting. Weldon shank to DIN 1835B. Shank diameter to h6.Available in HSS-Co 8% Uncoated (for general production machining), HSS-Co 8% TiCN Coated (extends cutter life and improves work material surface finish) and HSS-Co 8% TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
-

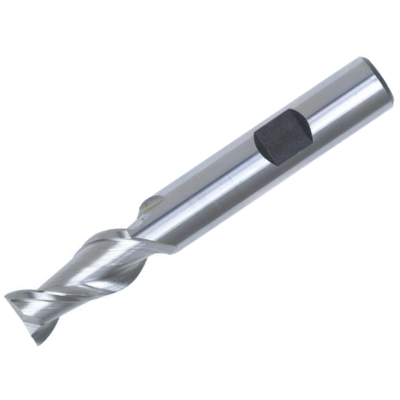

10.0 42DEG WELDON STD HIGH HELIX 2FL S/DRILL-8% CORead moreSwissTech HSS-Co 8% Weldon Shank 42° High Helix Slot Drills 2 Flute For Aluminium: Series 15, Regular – Uncoated
Series 15 – Regular Length
Dimensions to DIN 844. Centre cutting. Weldon shank to DIN 1835B. Shank cutting diameter to +0.04 -0.0.Available in HSS-Co 8% Uncoated (for general production machining), HSS-Co 8% TiCN Coated (extends cutter life and improves work material surface finish) and HSS-Co 8% TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
-
10.0mm 2FL CARBIDE AL-KARB MILLING CUTTERRead moreKennedy Carbide Plain Shank Al-Karb Ultrafine Micrograin Milling Cutters Slot Drills for Aluminium, 2 Flute: Short Series, Metric
Short Series – 2 Flute – Metric
Centre cutting as standard. An advanced tool geometry designed for cutting aluminium and other non-metallic, non-ferrous materials requiring high machining rates. Al-Karb cutters will out-perform conventional end mills on these materialÂs as the flute design allows maximum chip removal.Metric Tolerances
Diameter: Over 1.00 ~ up to 6.00. Tolerance: +0.000, -0.050.
Diameter: Over 6.00 ~ up to 25.00. Tolerance: +0.000, -0.080. -

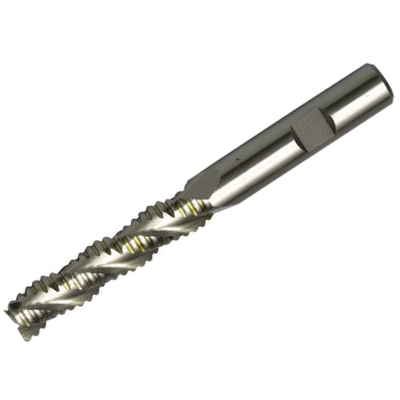

12.0 37D H/HELIX 3FL ROUGH E/M L/S ALUMRead moreSwissTech HSS-CO 8% Weldon Shank Coarse Pitch 37° High Helix for Aluminium Roughing End Mills 3 Flute: Series 21, Long – Uncoated
Series 21 – Long Series
Dimensions to DIN 844. Centre cutting. Weldon shank to DIN 1835B. Shank diameter to h6.Available in HSS-Co 8% Uncoated (for general production machining), HSS-Co 8% TiCN Coated (extends cutter life and improves work material surface finish) and HSS-Co 8% TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
-
12.0 37DEG HIGH HELIX 3FL ROUGH E/MILL-ALUMRead more
SwissTech HSS-CO 8% Weldon Shank Coarse Pitch 37° High Helix for Aluminium Roughing End Mills 3 Flute: Series 20, Regular – Uncoated
Series 20 – Regular Length
Dimensions to DIN 844. Centre cutting. Weldon shank to DIN 1835B. Shank diameter to h6.Available in HSS-Co 8% Uncoated (for general production machining), HSS-Co 8% TiCN Coated (extends cutter life and improves work material surface finish) and HSS-Co 8% TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
-

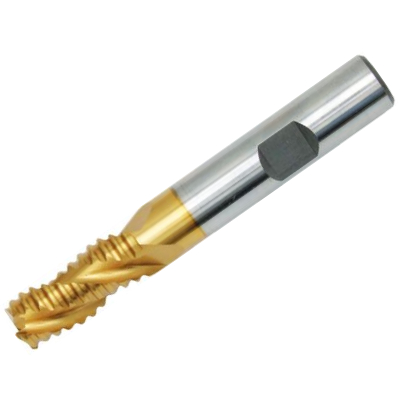

12.0 37DEG TIN H-HELIX 3FL R-E/MILL-ALUMRead moreSwissTech HSS-CO 8% Weldon Shank Coarse Pitch 37° High Helix for Aluminium Roughing End Mills 3 Flute: Series 20, Regular – TiN Coated
Series 20 – Regular Length, TiN Coated
Dimensions to DIN 844. Centre cutting. Weldon shank to DIN 1835B. Shank diameter to h6.Available in HSS-Co 8% Uncoated (for general production machining), HSS-Co 8% TiCN Coated (extends cutter life and improves work material surface finish) and HSS-Co 8% TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
-
12.0 42DEG WELDON STD HIGH HELIX 2FL S/DRILL-8% CORead more
SwissTech HSS-Co 8% Weldon Shank 42° High Helix Slot Drills 2 Flute For Aluminium: Series 15, Regular – Uncoated
Series 15 – Regular Length
Dimensions to DIN 844. Centre cutting. Weldon shank to DIN 1835B. Shank cutting diameter to +0.04 -0.0.Available in HSS-Co 8% Uncoated (for general production machining), HSS-Co 8% TiCN Coated (extends cutter life and improves work material surface finish) and HSS-Co 8% TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
-
12.0mm 2FL CARBIDE AL-KARB MILLING CUTTERRead more
Kennedy Carbide Plain Shank Al-Karb Ultrafine Micrograin Milling Cutters Slot Drills for Aluminium, 2 Flute: Short Series, Metric
Short Series – 2 Flute – Metric
Centre cutting as standard. An advanced tool geometry designed for cutting aluminium and other non-metallic, non-ferrous materials requiring high machining rates. Al-Karb cutters will out-perform conventional end mills on these materialÂs as the flute design allows maximum chip removal.Metric Tolerances
Diameter: Over 1.00 ~ up to 6.00. Tolerance: +0.000, -0.050.
Diameter: Over 6.00 ~ up to 25.00. Tolerance: +0.000, -0.080. -
16.0 37DEG HIGH HELIX 3FL ROUGH E/MILL-ALUMRead more
SwissTech HSS-CO 8% Weldon Shank Coarse Pitch 37° High Helix for Aluminium Roughing End Mills 3 Flute: Series 20, Regular – Uncoated
Series 20 – Regular Length
Dimensions to DIN 844. Centre cutting. Weldon shank to DIN 1835B. Shank diameter to h6.Available in HSS-Co 8% Uncoated (for general production machining), HSS-Co 8% TiCN Coated (extends cutter life and improves work material surface finish) and HSS-Co 8% TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
-
16.0 42DEG WELDON STD HIGH HELIX 2FL S/DRILL-8% CORead more
SwissTech HSS-Co 8% Weldon Shank 42° High Helix Slot Drills 2 Flute For Aluminium: Series 15, Regular – Uncoated
Series 15 – Regular Length
Dimensions to DIN 844. Centre cutting. Weldon shank to DIN 1835B. Shank cutting diameter to +0.04 -0.0.Available in HSS-Co 8% Uncoated (for general production machining), HSS-Co 8% TiCN Coated (extends cutter life and improves work material surface finish) and HSS-Co 8% TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
-
16.0mm 2FL CARBIDE AL-KARB MILLING CUTTERRead more
Kennedy Carbide Plain Shank Al-Karb Ultrafine Micrograin Milling Cutters Slot Drills for Aluminium, 2 Flute: Short Series, Metric
Short Series – 2 Flute – Metric
Centre cutting as standard. An advanced tool geometry designed for cutting aluminium and other non-metallic, non-ferrous materials requiring high machining rates. Al-Karb cutters will out-perform conventional end mills on these materialÂs as the flute design allows maximum chip removal.Metric Tolerances
Diameter: Over 1.00 ~ up to 6.00. Tolerance: +0.000, -0.050.
Diameter: Over 6.00 ~ up to 25.00. Tolerance: +0.000, -0.080. -
18.0 42DEG WELDON STD HIGH HELIX 2FL S/DRILL-8% CORead more
SwissTech HSS-Co 8% Weldon Shank 42° High Helix Slot Drills 2 Flute For Aluminium: Series 15, Regular – Uncoated
Series 15 – Regular Length
Dimensions to DIN 844. Centre cutting. Weldon shank to DIN 1835B. Shank cutting diameter to +0.04 -0.0.Available in HSS-Co 8% Uncoated (for general production machining), HSS-Co 8% TiCN Coated (extends cutter life and improves work material surface finish) and HSS-Co 8% TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
-
20.0 37D H/HELIX 3FL ROUGH E/M L/S ALUMRead moreSwissTech HSS-CO 8% Weldon Shank Coarse Pitch 37° High Helix for Aluminium Roughing End Mills 3 Flute: Series 21, Long – Uncoated
Series 21 – Long Series
Dimensions to DIN 844. Centre cutting. Weldon shank to DIN 1835B. Shank diameter to h6.Available in HSS-Co 8% Uncoated (for general production machining), HSS-Co 8% TiCN Coated (extends cutter life and improves work material surface finish) and HSS-Co 8% TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
-
20.0 37DEG HIGH HELIX 3FL ROUGH E/MILL-ALUMRead more
SwissTech HSS-CO 8% Weldon Shank Coarse Pitch 37° High Helix for Aluminium Roughing End Mills 3 Flute: Series 20, Regular – Uncoated
Series 20 – Regular Length
Dimensions to DIN 844. Centre cutting. Weldon shank to DIN 1835B. Shank diameter to h6.Available in HSS-Co 8% Uncoated (for general production machining), HSS-Co 8% TiCN Coated (extends cutter life and improves work material surface finish) and HSS-Co 8% TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
-
20.0 42DEG WELDON STD HIGH HELIX 2FL S/DRILL-8% CORead more
SwissTech HSS-Co 8% Weldon Shank 42° High Helix Slot Drills 2 Flute For Aluminium: Series 15, Regular – Uncoated
Series 15 – Regular Length
Dimensions to DIN 844. Centre cutting. Weldon shank to DIN 1835B. Shank cutting diameter to +0.04 -0.0.Available in HSS-Co 8% Uncoated (for general production machining), HSS-Co 8% TiCN Coated (extends cutter life and improves work material surface finish) and HSS-Co 8% TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
-
3.0 42DEG WELDON STD HIGH HELIX 2FL S/DRILL-8% CORead more
SwissTech HSS-Co 8% Weldon Shank 42° High Helix Slot Drills 2 Flute For Aluminium: Series 15, Regular – Uncoated
Series 15 – Regular Length
Dimensions to DIN 844. Centre cutting. Weldon shank to DIN 1835B. Shank cutting diameter to +0.04 -0.0.Available in HSS-Co 8% Uncoated (for general production machining), HSS-Co 8% TiCN Coated (extends cutter life and improves work material surface finish) and HSS-Co 8% TiALN Coated (dissipates and resists heat, reduces surface friction coupled with high surface hardness).
