Showing all 2 results

•

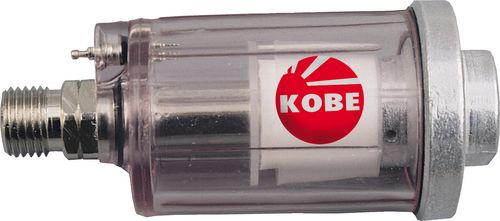

  1/4″ BSP WATER SEPARATOR

  Water Separator

  Continuously removes moisture from the air supply helping to prevent corrosion to the internal components of the air tool. The spring valve allows immediate draining of reservoir without any down time.

  Read more
•

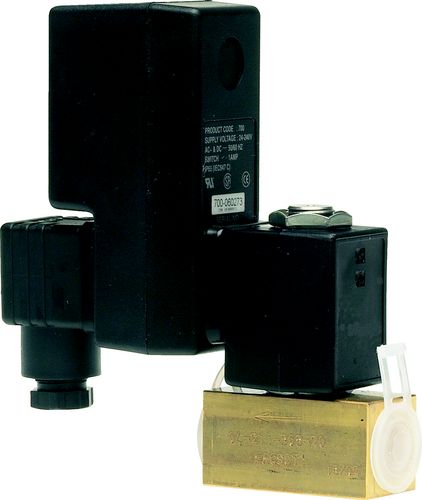

  AVD220 ELECT. AUTO DRAINVALVE 220V AC

  Kennedy Electronic Auto Drain Valve

  Electronic timer for ultimate reliability. Adjustable interval and discharge times. Self cleaning valve needs no maintenance. LED indicators show operational status. Impulse test button. Supplied with full instructions. Includes tamperproof kit.

  Technical Specifications
  Electronic Timer:
  Power ‘ON’ LED. Valve ‘OPEN’ LED.
  Interval time: 0.5 to 45min.
  Discharge time: 0.5 to 10sec.
  Solenoid Valve: 0 to 16 bar.
  Function: 2/2 NC.
  Port connections: G3/8.
  Main pressure range: 0 – 16 bar max.
  Filtration: strainer recommended.
  Temperature range: Ambient -10°C to +50°C, Media -10°C to +140°C.
  Lubrication: not required.
  Media: air, gases, non-corrosive liquids.

  Timer & Solenoid Valve Assembly
  Electrical data: AC 220V, 50Hz, 19W AC 110V, 50Hz, 28W.
  Insulation: Class H 180°C.
  Protection: IP65 (with connector).
  Temperature range: -10°C to +140°C.

  Materials Solenoid Valve
  Tube and plunger: stainless steel.
  Spring: stainless steel. Body: brass. Seals: Buna.

  Read more
