Architectural Hardware
Showing 257–272 of 410 results
-

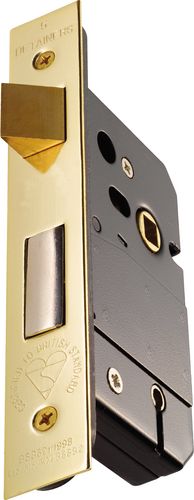

BS 5-LEVER SASHLOCK 3.0″SCPRead moreBS 5 Lever Detainer Sashlock – Satin Chrome Plate Finish
705
Kitemarked to BS3621. Insurance approved sashlock, easily reversible latchbolt, five detainer mechanism, 64mm (2 1/2″) case size. Supplied with square or radius forend and strike. Supplied with two keys. Satin chrome plate finish. -
-

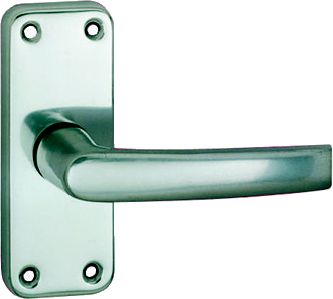

BUDGET LEVER EURO PROFILERead moreMatlock Budget Levers
Finished in aluminium on pressed backplate
-
-
-
BUDGET LEVER OVAL PROFILERead moreMatlock Budget Levers
Finished in aluminium on pressed backplate
-

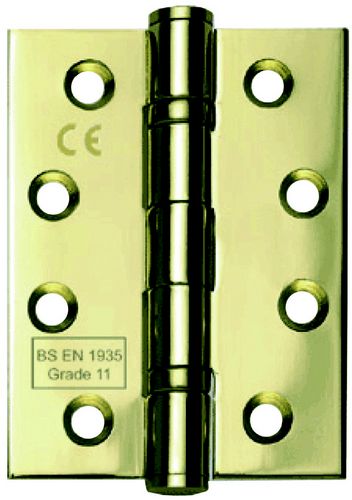

CLASS 13 CE 2 B/BEARING HINGES E/B 100x75x3mm (PR)Read moreStainless Steel 2 Ball Bearing Butt Hinge
525
Brass plated.
Grade 304 stainless steel. One hour fire tested. Stainless steel pin complete with screws. -

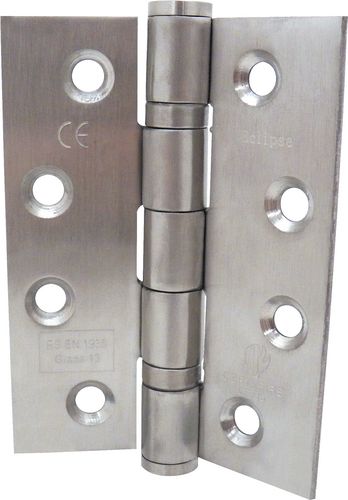

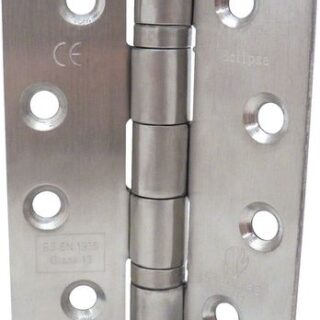

CLASS 13 CE 2 B/BEARING HINGES PSS 100x75x3mm (PR)Read moreMatlock Stainless Steel 2 Ball Bearing Butt Hinge
523CE
Available in polished or satin stainless steel finish. Grade 304 stainless steel. One hour fire tested. Stainless steel pin. Complete with screws. -
CLASS 13 CE 2 B/BEARING HINGES SSS 100x75x3mm PK2Read moreMatlock Stainless Steel 2 Ball Bearing Butt Hinge
523CE
Available in polished or satin stainless steel finish. Grade 304 stainless steel. One hour fire tested. Stainless steel pin. Complete with screws. -

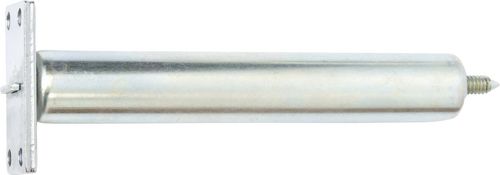

CONCEALED CHAIN CLOSER BRASSRead moreDoor Furniture
Concealed spring type closer. Spring tension closing force Adjustable. Certified to BS 476 Pt. 22:1987. 1/2 hour fire rated. Left or right hand fitting. Suitable for use on doors up to 50kg. Available in brass or chrome finish.
-
CONCEALED CHAIN CLOSER CHROMERead moreDoor Furniture
Concealed spring type closer. Spring tension closing force Adjustable. Certified to BS 476 Pt. 22:1987. 1/2 hour fire rated. Left or right hand fitting. Suitable for use on doors up to 50kg. Available in brass or chrome finish.
-

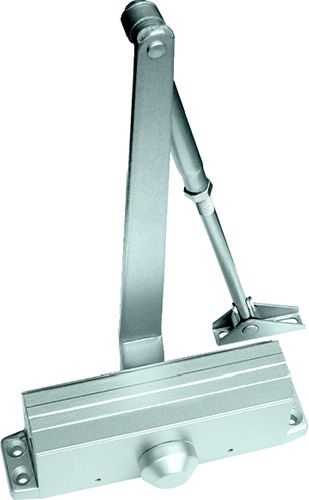

CONTRACT DOOR CLOSER SIZE 3 CE & CERTIFIRE SILVERRead moreDoor Furniture
This comprehensive range of Door Controls feature varying power sized units for many different door applications. They come with a choice of architectural covers which are each available in 26 different plated or colour coated finishes.
To help select the correct closer for you, each unit has a listing showing their key features, certification numbers and fire ratings. Plated arms are available on certain units only, and test certificates are available upon request.BS EN1154 Classification
This standard classifies door closers using a 6 digit coding system. Each digit relates to a particular feature of the product measured against the standards performance requirements.
Digit (1) – Category of use:
?3? denotes the unit is for closing doors from at least 105.
?4? denotes the unit is for closing doors from 180 open.
Digit (2) – Durability:
?8? successfully completed 500,000 test cycles.
Digit (3) – Test door mass/size:
Seven grades are identified as shown in the table below (where a
closer provides a range of power sizes both the minimum and
maximum sizes shall be shown):
Power size Test door mass Recommended door leaf width
1 20kg 750mm
2 40kg 850mm
3 60kg 950mm
4 80kg 1100mm
5 100kg 1250mm
6 120kg 1400mm
7 160kg 1600mm
Digit (4) – Fire behaviour:
?0? denotes the unit is NOT suitable for use on fire/smoke doors.
?1? denotes the unit IS suitable for use on fire/smoke doors.
Digit (5) – Safety in use:
?1? all door closer units are required to stisfy the essential requirement of safety in use.
Digit (6) – Corrosion-resistance:
?0? – indicates no defined corrosion-resistance,
?1? – indicates mild corrosion-resistance,
?2? – indicates a moderate level of corrosion-resistance,
?3? – indicates high corrosion-resistance,
?4? – indicates very high corrosion-resistance.
Within this section units have been tested to BS EN1154, with many units also having been tested to current Certifire testing and CE test criteria. Therefore, the 6 digit classification is shown against each of the varying units, thus indicating their performance and grading under BS EN1154.An example of the grading for a 1559 closer unit would be as follows:
3 8 4/2 1 1 3
(1) (2) (3) (4) (5) (6) -

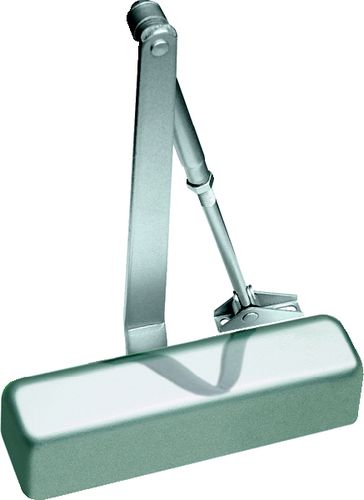

CONTRACT DOOR CLOSER SZ.3 COVER CE & CERTIFIRE SERead moreDoor Furniture
This comprehensive range of Door Controls feature varying power sized units for many different door applications. They come with a choice of architectural covers which are each available in 26 different plated or colour coated finishes.
To help select the correct closer for you, each unit has a listing showing their key features, certification numbers and fire ratings. Plated arms are available on certain units only, and test certificates are available upon request.BS EN1154 Classification
This standard classifies door closers using a 6 digit coding system. Each digit relates to a particular feature of the product measured against the standards performance requirements.
Digit (1) – Category of use:
?3? denotes the unit is for closing doors from at least 105.
?4? denotes the unit is for closing doors from 180 open.
Digit (2) – Durability:
?8? successfully completed 500,000 test cycles.
Digit (3) – Test door mass/size:
Seven grades are identified as shown in the table below (where a
closer provides a range of power sizes both the minimum and
maximum sizes shall be shown):
Power size Test door mass Recommended door leaf width
1 20kg 750mm
2 40kg 850mm
3 60kg 950mm
4 80kg 1100mm
5 100kg 1250mm
6 120kg 1400mm
7 160kg 1600mm
Digit (4) – Fire behaviour:
?0? denotes the unit is NOT suitable for use on fire/smoke doors.
?1? denotes the unit IS suitable for use on fire/smoke doors.
Digit (5) – Safety in use:
?1? all door closer units are required to stisfy the essential requirement of safety in use.
Digit (6) – Corrosion-resistance:
?0? – indicates no defined corrosion-resistance,
?1? – indicates mild corrosion-resistance,
?2? – indicates a moderate level of corrosion-resistance,
?3? – indicates high corrosion-resistance,
?4? – indicates very high corrosion-resistance.
Within this section units have been tested to BS EN1154, with many units also having been tested to current Certifire testing and CE test criteria. Therefore, the 6 digit classification is shown against each of the varying units, thus indicating their performance and grading under BS EN1154.An example of the grading for a 1559 closer unit would be as follows:
3 8 4/2 1 1 3
(1) (2) (3) (4) (5) (6) -

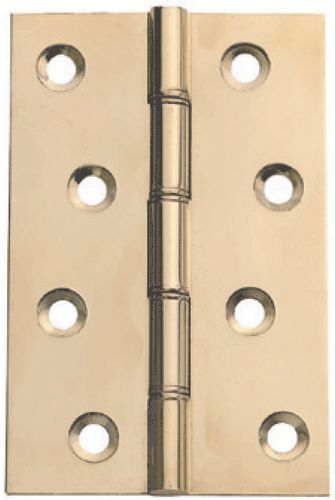

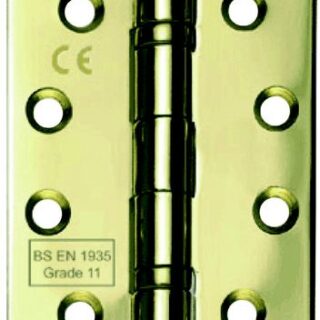

DBL PHOSPHER BRONZE WASHERED HINGES 100x75x3mm(PR)Read morePolished Brass Butt Hinge
508
Double phosphor bronze washered finish. Brass pin. One year guarantee. -

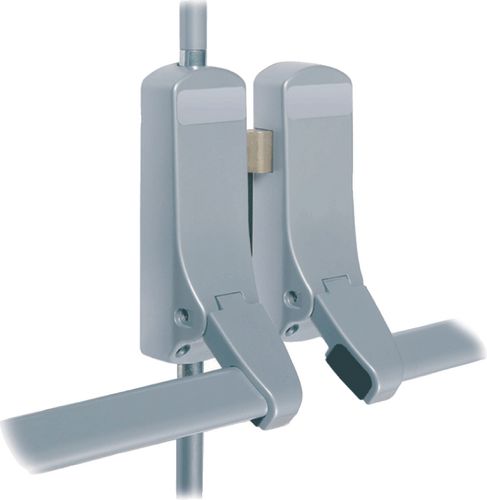

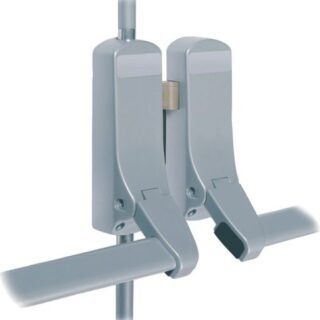

DOUBLE DOOR PANIC BOLTRead morePanic Hardware
This panic hardware range of emergency exit devices contains products that are certified to the European CEN standards BS EN179 & BS EN1125 and offers a design to give optimum safety and security. All products meet with the required standards in today’s market. They have an anti-thrust mechanism to protect against attack, they carry a ten year manufacturer’s guarantee and are two hour fire rated. Standard sized units are suitable for doors up to 2440mm high and 1220mm wide. Special sized vertical shoots, horizontal bars, keeps and pullman catch kits are available on request. Silver finish.
-

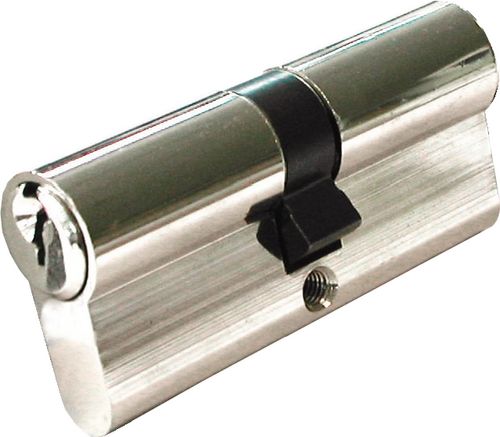

DOUBLE EURO PROFILE CYLINDER 70mm PBRead moreDouble Euro Profile Cylinder
70mm (35/35). Available in polished brass or satin chrome plate finishes.
