Category: Magnetic Drilling & Broaching
Magnetic Drilling & Broaching
Showing all 9 results
-

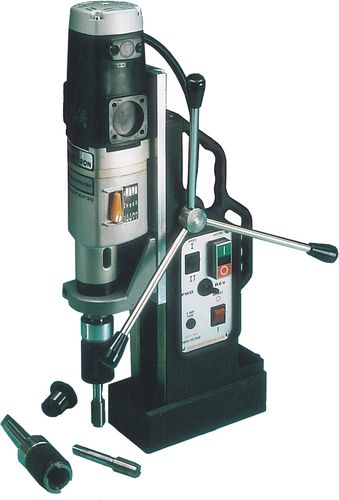

MAG TAP 30 TAPPING MACHINE 110 VOLTRead moreMagtron Variable Speed Tapping Drilling System
MT30/MTE30
This machine is ideal for tapping, reaming and drilling of large diameters. It has a clutched gearbox for extra protection and safety cut-out to protect the operator. Supplied with drift key, safety hook, cutting oil, allen key and carrying case. Tapping heads and collets to be ordered separately.
Dimensions (H x W x L ): 500 x 135 x 320mm.
Clamping force: 1,700kg/4,000lbs.
MT 30 power unit: B4 32 AEG. Power input: 1,100W.
MTE 30 power unit: Eibenstock. Power input: 1,800W. -

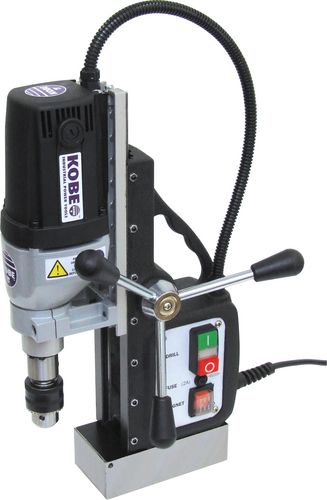

MAGNETIC DRILLING & MILLING MACHINE 110VRead moreDMM3050-240v/3050i-110v MAGNETIC DRILLING & MILLING MACHINE
Suitable for light industrial use, these machines have a powerful 1200W motor providing enough power to drill holes up to 35mm diameter. They have a gravity feed coolant bottle, 13mm chuck, key and weldon adaptor, safety chain, drilling guard and hexagon keys.
Specification:
Model: DMM3050-240V/DMM3050i-110V.
Motor: 1200W.
Arbor: 19mm weldon.
Chuck size: 13mm (1/2â).
Speed: 595rpm.
Magnetic adhesion: 13,000N.
Weight: 13.5kg net.
Dimensions (H x W x D): 390 x 260 x 100mm.
Drilling capacities:
Core drill 12 – 35mm
Twist drill 1.5 – 13mm
Countersink 10 – 40mm
Cutting depth: 50mm.
Stroke: 165mm.
Sound pressure (LPA): 109.5dBA.
Sound power (LWA): 107.8dBA.
Vibration level: 1.5m/s2. -
MAGNETIC DRILLING & MILLING MACHINE 230VRead moreDMM3050-240v/3050i-110v MAGNETIC DRILLING & MILLING MACHINE
Suitable for light industrial use, these machines have a powerful 1200W motor providing enough power to drill holes up to 35mm diameter. They have a gravity feed coolant bottle, 13mm chuck, key and weldon adaptor, safety chain, drilling guard and hexagon keys.
Specification:
Model: DMM3050-240V/DMM3050i-110V.
Motor: 1200W.
Arbor: 19mm weldon.
Chuck size: 13mm (1/2â).
Speed: 595rpm.
Magnetic adhesion: 13,000N.
Weight: 13.5kg net.
Dimensions (H x W x D): 390 x 260 x 100mm.
Drilling capacities:
Core drill 12 – 35mm
Twist drill 1.5 – 13mm
Countersink 10 – 40mm
Cutting depth: 50mm.
Stroke: 165mm.
Sound pressure (LPA): 109.5dBA.
Sound power (LWA): 107.8dBA.
Vibration level: 1.5m/s2. -

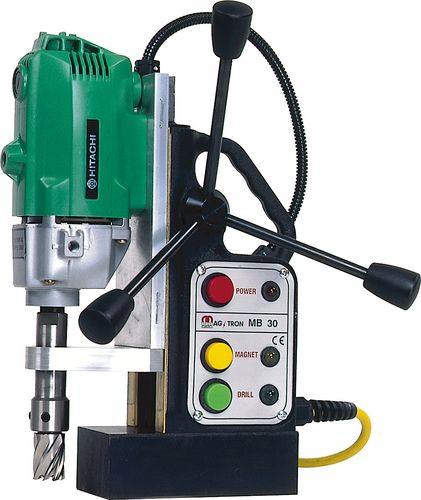

MB30 MINI-MAG BORE & DRILL SYSTEM 110VRead moreMagtron Mini-Mag Bore & Drilling System
MB30
Has an Hitachi power unit and a powerful magnet with a clamping force of 1,000kgs/ 2,200lbs. A safety relay and an automatic cut-out gives maximum operator protection. Supplied with arbor and support, safety chain, carabina hook, cutting oil, chuck and key, allen keys and carrying case.
Dimensions (H x W x L): 295 x 100 x 235mm. Power input: 750W. -
MB30 MINI-MAG BORE & DRILL SYSTEM 240VRead moreMagtron Mini-Mag Bore & Drilling System
MB30
Has an Hitachi power unit and a powerful magnet with a clamping force of 1,000kgs/ 2,200lbs. A safety relay and an automatic cut-out gives maximum operator protection. Supplied with arbor and support, safety chain, carabina hook, cutting oil, chuck and key, allen keys and carrying case.
Dimensions (H x W x L): 295 x 100 x 235mm. Power input: 750W. -

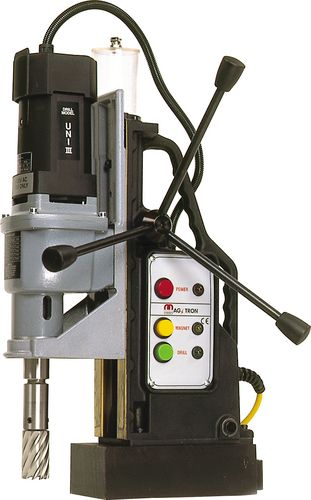

MBE100 VARI SPEED MILL/DRILL SYSTEM 110VRead moreMagtron Variable Speed Milling/Drilling System
MBE100
Unique power unit gives constant torque and speed regulation even under load. Powerful magnet has a clamping force of 1,410kg/3,100lbs. This machine has a slow start and infinite variable speed. It has a slipping clutch to protect against breakage of cutters and comes complete with an oil coolant system to automatically lubricate the cutters. The gearbox is mounted directly onto the cradle for extra rigidity. Supplied with three morse taper arbor, morse drift key, safety chain, carabina hook, hexagon keys, carry case.
Dimensions (H x W x L): 500 x 135 x 312mm. Power input: 1,800W. -
MBE100 VARI SPEED MILL/DRILL SYSTEM 240VRead moreMagtron Variable Speed Milling/Drilling System
MBE100
Unique power unit gives constant torque and speed regulation even under load. Powerful magnet has a clamping force of 1,410kg/3,100lbs. This machine has a slow start and infinite variable speed. It has a slipping clutch to protect against breakage of cutters and comes complete with an oil coolant system to automatically lubricate the cutters. The gearbox is mounted directly onto the cradle for extra rigidity. Supplied with three morse taper arbor, morse drift key, safety chain, carabina hook, hexagon keys, carry case.
Dimensions (H x W x L): 500 x 135 x 312mm. Power input: 1,800W. -

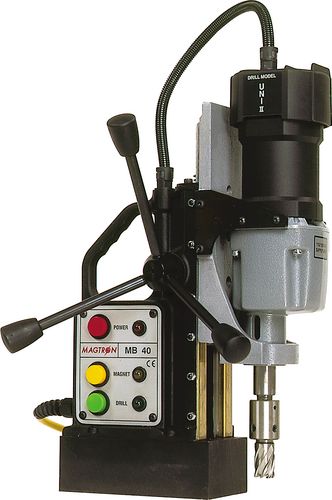

MBE40 2-SP. VARI MILL/DRILL SYSTEM 110VRead moreMagtron Two Speed Variable Milling/Drilling System
MBE40
Has a unique two speed power unit with variable speed control and a powerful magnet with a clamping force of 1,410kg/3,100lbs. Automatic safety is provided by revolutionary electronic switching system, supplied with two morse taper arbor, morse taper drift, safety chain, carabina hook, cutting oil, hexagon keys and carry case.
Dimensions (H x W x L): 418 x 100 x 281mm. Power input: 1,050W. -
MBE40 2-SP. VARI MILL/DRILL SYSTEM 240VRead moreMagtron Two Speed Variable Milling/Drilling System
MBE40
Has a unique two speed power unit with variable speed control and a powerful magnet with a clamping force of 1,410kg/3,100lbs. Automatic safety is provided by revolutionary electronic switching system, supplied with two morse taper arbor, morse taper drift, safety chain, carabina hook, cutting oil, hexagon keys and carry case.
Dimensions (H x W x L): 418 x 100 x 281mm. Power input: 1,050W.
