  BENCH PILLAR DRILL 230V 13mmx200mm CAPACITY

  Osaki™ 5-Speed Bench Drill

  This versatile machine has a smooth running 350W motor for drilling holes up to 13mm. It can be set to five different speeds for versatility and performance when drilling different materials. Complete with a tilting rise and fall work table it operates from a standard 13amp plug.
  Power input: 350W.
  Motor output: 210W.
  Supply voltage: 230V – 50Hz.
  Spindle travel: 50mm.
  Spindle taper: MT2.
  Table size: 156 x 160mm.
  Base size: 314 x 200mm.
  Column diameter: 46mm.
  Drilling speed: 580 – 2650rpm.
  Sound power: 75.1dBA.
  Sound pressure: 62.1dBA.
  Max distance from spindle axis to surface of column: 104mm.
  Max distance from spindle end to surface of table: 200mm.
  Max distance from spindle end to surface of base: 290mm.
  Overall size: 355 x 225 x 580mm.
  Net weight: 19kg.

  FOR DIY USE: Not warranted for Industrial Use

  Read more
•

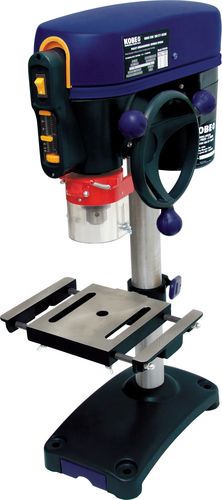

  BENCH PILLAR DRILL 230V 13mmx250mm CAPACITY

  Kobe™ Bench Pillar Drill – 350W

  Industry standard Morse Taper specification pillar drills, suitable for workshop and light industrial use with a tilting rise and fall work table, user friendly depth gauge, telescopic chuck guard, integral bit drawer and laser beam target guide for quick positioning of repeat work.

  DPB350
  This drill has a smooth running 350W motor which provides enough power to drill holes up to 13mm and five speeds for versatility and performance when drilling different materials.
  Spindle taper: MT2.
  Chuck: 13mm.
  Drill capacity: 13mm.
  Spindle travel: 50mm.
  Speeds: 5.
  Speed range: 580-2650rpm.
  Max distance – chuck/table: 250mm.
  Max distance – spindle to column: 102mm.
  Column diameter: 50mm.
  Table size: 152 x 170mm.
  c/w side plates : 192 (max 272) x 170mm.
  Base size: 320 x 190mm.

  Read more
•

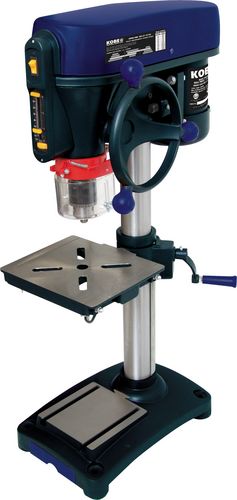

  BENCH PILLAR DRILL 230V 16mmx355mm CAPACITY

  Kobe™ Bench Pillar Drill – 500W

  Industry standard Morse Taper specification pillar drills, suitable for workshop and light industrial use with a tilting rise and fall work table, user friendly depth gauge, telescopic chuck guard, integral bit drawer and laser beam target guide for quick positioning of repeat work.

  DPB500
  More versatile than its smaller stable mate. A 500W motor provides more power to drill holes up to 16mm with 12 speeds for increased performance when drilling on either the table or base.
  Spindle taper: MT2.
  Chuck: 16mm.
  Drill capacity: 16mm.
  Spindle travel: 65mm.
  Speeds: 12.
  Speed range: 425 – 2545rpm.
  Max distance – chuck/table: 355mm.
  Max distance – chuck/base: 465mm.
  Max distance – spindle to column: 126mm.
  Column diameter: 60mm.
  Table size: 200 x 200mm.
  c/w side plates: 200 x 340mm.
  Base size: 380 x 250mm.

  Read more
•

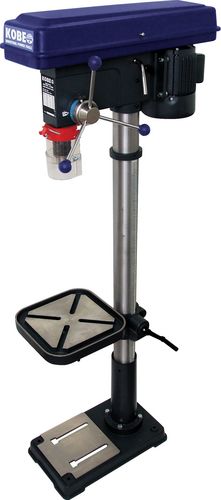

  FLOOR PILLAR DRILL 230V 20mmx725mm CAPACITY

  Kobe™ Floor Standing Pillar Drill

  DPF550
  Suitable for industrial use on much larger workpieces. It’s 550W motor and 12 speeds which give optimal performance when drilling holes up to 20mm. It also comes with a no-volt auto-release switch which turns off when voltage is removed by power cut etc. This stops the machine from starting up on its own when power is restored. The tilting work table with rise and fall rack and pinion can rotate to the rear of the pillar to accommodate larger workpieces on the base plate.

  Spindle taper: MT2.
  Chuck: 16mm.
  Drill capacity: 20mm.
  Spindle travel: 80mm.
  Speeds: 12. Speed range: 200-2600rpm.
  Max distance – chuck/table: 725mm.
  Max distance – chuck/base: 1220mm.
  Max distance – spindle to column: 190mm.
  Column diameter: 80mm.
  Table size: 300 x 300mm.
  Base size: 500 x 300mm.
