Showing all 15 results

•

  10005 CUTTER 8mmx8mm (SET-11)

  Osakii™ Optional Accessories

  A range of optional accessories to suit the Osaki Mini Milling/Drilling Machine (OSA-271-5500K) are available.

  Read more
•

  10006 CUTTER 8mmx8mm (SET-6)

  Osakii™ Optional Accessories

  A range of optional accessories to suit the Osaki Mini Milling/Drilling Machine (OSA-271-5500K) are available.

  Read more
•

  10007 FACE PLATE 160mm DIA.

  Osakii™ Optional Accessories

  A range of optional accessories to suit the Osaki Mini Milling/Drilling Machine (OSA-271-5500K) are available.

  Read more
•

  10007A CLAMPING KIT FOR FACE PLATE

  Osakii™ Optional Accessories

  A range of optional accessories to suit the Osaki Mini Milling/Drilling Machine (OSA-271-5500K) are available.

  Read more
•

  10010 4-JAW CHUCK (INDEPENDANT)

  Osakii™ Optional Accessories

  A range of optional accessories to suit the Osaki Mini Milling/Drilling Machine (OSA-271-5500K) are available.

  Read more
•

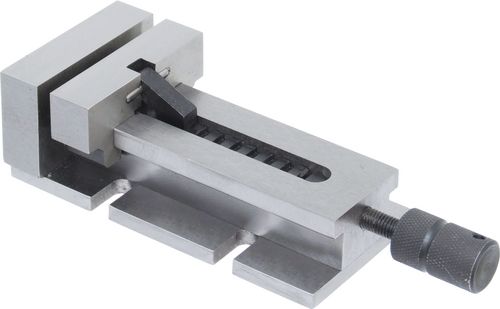

  10036 QUICK VICE 100mm

  Osakii™ Toolmaker’s Vices

  Made from alloy steel with a quick release mechanism and knurled grip handle. For use with mini milling/drilling machines.
  Jaw dimensions (W x O x H): 100 x 85 x 28mm.

  Read more
•

  10037 MT3 MILL CHUCK SET

  Osakii™ Optional Accessories for Mini Milling/Drilling Machine

  A range of optional accessories to suit the Osaki Mini Milling/Drilling Machine (OSA-271-5500K) are available.

  Read more
•

  10046 30mm INDEXABLE CARBIDE END MILL

  Osakii™ Optional Accessories for Mini Milling/Drilling Machine

  A range of optional accessories to suit the Osaki Mini Milling/Drilling Machine (OSA-271-5500K) are available.

  Read more
•

  10061 MILL ATTACHMENT

  Osakii™ Optional Accessories

  A range of optional accessories to suit the Osaki Mini Milling/Drilling Machine (OSA-271-5500K) are available.

  Read more
•

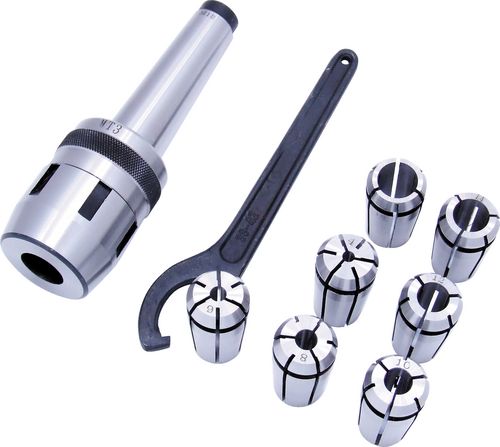

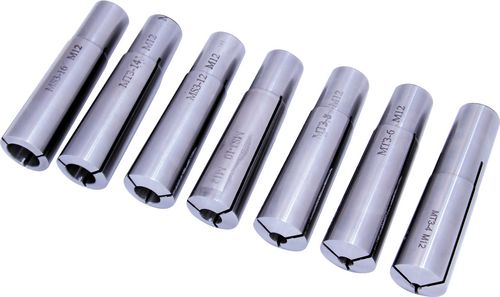

  10126 MT3 COLLET SET

  Osakii™ Optional Accessories for Mini Milling/Drilling Machine

  A range of optional accessories to suit the Osaki Mini Milling/Drilling Machine (OSA-271-5500K) are available.

  Read more
•

  10130 KNURLING TOOLHOLDER

  Osakii™ Optional Accessories

  A range of optional accessories to suit the Osaki Mini Milling/Drilling Machine (OSA-271-5500K) are available.

  Read more
•

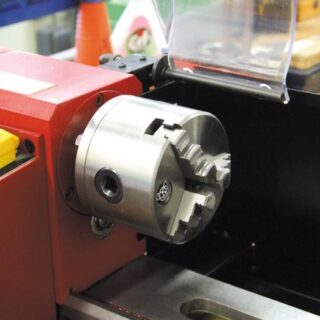

  CHUCK GUARD ASSEMBLY FORMINI LATHE

  Osakii™ Optional Accessories

  A range of optional accessories to suit the Osaki Mini Milling/Drilling Machine (OSA-271-5500K) are available.

  Read more
•

  CHUCK GUARD ASSEMBLY FORMINI MILL

  Osakii™ Optional Accessories for Mini Milling/Drilling Machine

  A range of optional accessories to suit the Osaki Mini Milling/Drilling Machine (OSA-271-5500K) are available.

  Read more
•

  MINI METAL WORKING LATHE300mm BETWEEN CENTRES

  Mini Metalworking Lathe

  This little gem is ideal for model-making etc. Supplied with a self-centring three jaw chuck, four-way tool post, swarf tray, rear splash guard, emergency stop button and chuck guard. A variety of useful accessories are available (see list). Manufactured to meet European Machinery Directive 98/37/EC and is both CE and RoSH compliant.
  Specifications:
  Swing over bed: 180mm.
  Distance between centres: 300mm.
  Hole through spindle: 20mm.
  Spindle taper: MT#3.
  Tailstock taper: MT#2.
  Spindle speed:
  Low range: 0 – 1100rpm ±10%.
  High range: 0 – 2500rpm ±10%.
  Output power: 250W.
  Range of threads: metric 0.4 -2.00mm
  (10 thread pitches) or inch 12 – 52 TP
  (8 thread pitches).
  Net/gross weight: 37/40kg.
  Packing size: 770 x 330 x 330mm.

  Read more
•

  MINI MILLING/DRILLING MACHINE

  Mini Milling/Drilling Machine

  A must for model makers. Bench mounted, this milling/drilling machine has a spindle rotation of up to 45°, making it a very capable tool. An assortment of useful accessories are available (see list). This versatile tool has been manufactured to meet European Machinery Directive 98/37/EC and is both CE and RoSH compliant.
  Specifications:
  Swing over bed: 180mm.
  Drilling capacity: 13mm.
  End milling capacity: 16mm.
  Face milling capacity: 30mm.
  Headstock travel (Z): 180mm.
  Cross axis: 100mm.
  Longitudinal axis: 220mm.
  Spindle rotary angle: ±45.
  Output power: 350W.
  Spindle speed:
  Low range: 0 – 1100rpm ±10%.
  High range: 0 – 2500rpm ±10%.
  Spindle taper: MT#3.
  T-slot: 12mm.
  Net/gross weight: 50/68kg.
  Packing size: 540 x 500 x 760mm.

  Read more
