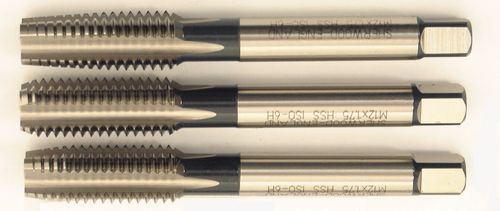

12×1.75mm HSS GT STR. FLUTE TAP SET
Rp648.000
Sets of Three
1 each, taper, second and plug lead
18 in stock
SKU : SHR0850480D
Sets of Three
1 each, taper, second and plug lead
Specification :
Brand : Sherwood
eCl@ss Code : 21010210
Overall Length (mm) : 89.0
Shank Diameter (mm) : 9.00
Size x Pitch (mm) : M12.0 x 1.75
Thread Length (mm) : 23.0
UNSPSC Code : 27112806
| Weight | 1 kg |
|---|
