12″x1″x14TPI HSS ALL HARD HACKSAW BLADES
Rp136.000

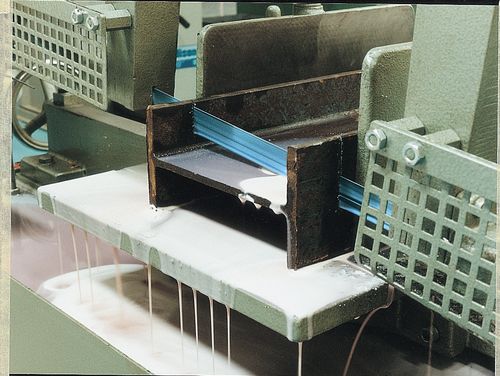

HSS All Hard Power Saw Blades
Recommended for cutting thin cross-sections such as tubing, small bars and light angle iron. Because blades are relatively thin they should be used only on light machines.
Power Saw Hacksaw Blade Tooth Recommendations:
TPI: 18. Suitable for Section Width: up to 13mm (up to 1/2â).
TPI: 14. Suitable for Section Width: 6 to 19mm (1/4â to 3/4â).
TPI: 10. Suitable for Section Width: 8 to 25mm (5/16â to 1).
TPI: 6. Suitable for Section Width: 13 to 38mm (1/2â to 1 1/2â).
TPI: 4. Suitable for Section Width: 19mm and above (3/4â and above).
Out of stock
SKU : KEN0405040K
HSS All Hard Power Saw Blades
Recommended for cutting thin cross-sections such as tubing, small bars and light angle iron. Because blades are relatively thin they should be used only on light machines.
Power Saw Hacksaw Blade Tooth Recommendations:
TPI: 18. Suitable for Section Width: up to 13mm (up to 1/2â).
TPI: 14. Suitable for Section Width: 6 to 19mm (1/4â to 3/4â).
TPI: 10. Suitable for Section Width: 8 to 25mm (5/16â to 1).
TPI: 6. Suitable for Section Width: 13 to 38mm (1/2â to 1 1/2â).
TPI: 4. Suitable for Section Width: 19mm and above (3/4â and above).
Specification :
Brand : Kennedy Industrial
eCl@ss Code : 21011603
Length : 12″
Overall Weight : 0.07
Thickness : .050″
TPI : 14T
UNSPSC Code : 27112802
Weight per 10 : 0.79kg
Width : 1″
| Weight | 1 kg |
|---|
