3/32″x5/8″x5″ COBALT PART-OFF BLADE
Rp660.000
HSS Cobalt Toolbits
5% Cobalt Parting-Off Inch

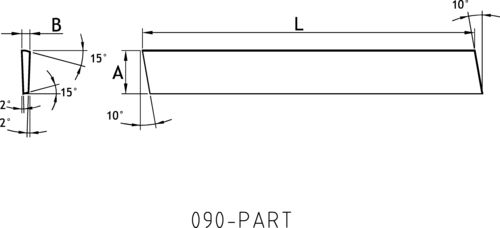

Cut faster, ‘stand up’ longer and reduce costs. Square and rectangular toolbits supplied with 15° bevelled ends. Parting-off blades supplied with 2° side taper, 10° bevel (top and bottom).
Out of stock
SKU : KEN0905430K
HSS Cobalt Toolbits
5% Cobalt Parting-Off Inch
Cut faster, ‘stand up’ longer and reduce costs. Square and rectangular toolbits supplied with 15° bevelled ends. Parting-off blades supplied with 2° side taper, 10° bevel (top and bottom).
Specification :
B x A : 3/32″ – 5/8″
Brand : Kennedy Industrial
eCl@ss Code : 21010902
Lumens : 5″
UNSPSC Code : 23242104
Weight each : 30g
| Weight | 1 kg |
|---|
