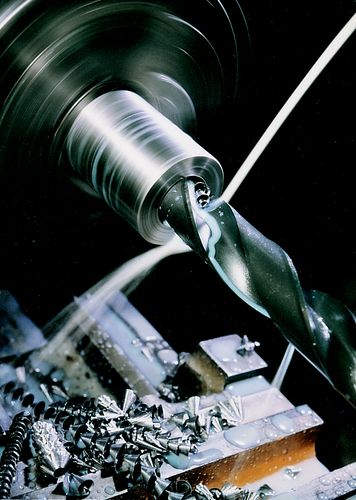

39.50mm HSS T/S DRILL
Sherwood HSS Taper Shank Drills, 4 Morse Taper – Metric
Series T100
General-purpose drills to drill steels with a tensile strength up to 1.000 N/mm2, cast steel, grey cast iron, malleable cast iron, nickel brass and graphite. Point angle: 118, helix angle: normal, relief angle: normal, tolerance of diameter: h8. Manufacturing Standard: DIN345.
SKU : SHR0252855W
Sherwood HSS Taper Shank Drills, 4 Morse Taper – Metric
Series T100
General-purpose drills to drill steels with a tensile strength up to 1.000 N/mm2, cast steel, grey cast iron, malleable cast iron, nickel brass and graphite. Point angle: 118, helix angle: normal, relief angle: normal, tolerance of diameter: h8. Manufacturing Standard: DIN345.
Specification :
Brand : Sherwood
Diameter (mm) : 39.50
eCl@ss Code : 21010101
Flute Length : 200
Overall Length : 349
Overall Weight : 3.09
UNSPSC Code : 23241639
| Weight | 1 kg |
|---|
