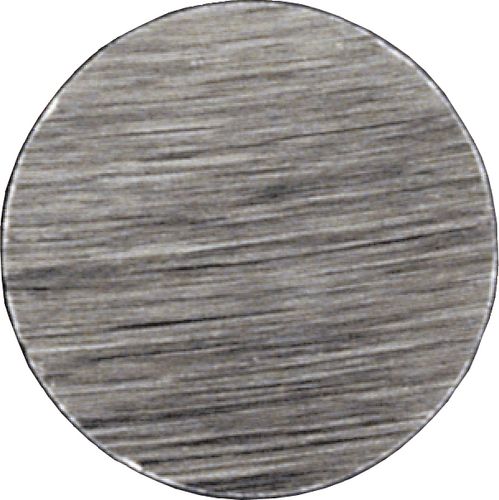

8mm DIA. x 125mm COBALT TOOLBIT
HSS Cobalt Toolbits
5% Cobalt Round Metric
Cut faster, ‘stand up’ longer and reduce costs. Square and rectangular toolbits supplied with 15° bevelled ends. Parting-off blades supplied with 2° side taper, 10° bevel (top and bottom).
SKU : KEN0904610K
HSS Cobalt Toolbits
5% Cobalt Round Metric
Cut faster, ‘stand up’ longer and reduce costs. Square and rectangular toolbits supplied with 15° bevelled ends. Parting-off blades supplied with 2° side taper, 10° bevel (top and bottom).

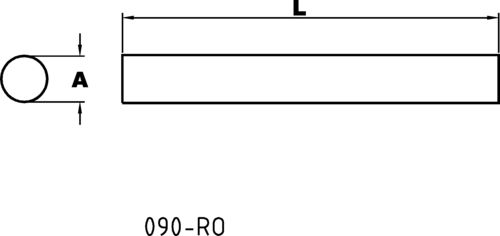

Specification :
A : 8.00
Brand : Kennedy Industrial
eCl@ss Code : 21010902
Lumens : 125.00
UNSPSC Code : 23242104
Weight each : 60g
| Weight | 1 kg |
|---|
