DAM668 DIGITAL MULTIMETER

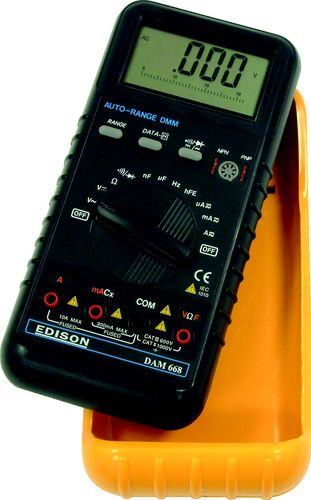

Digital Multimeter – DAM668
DAM668

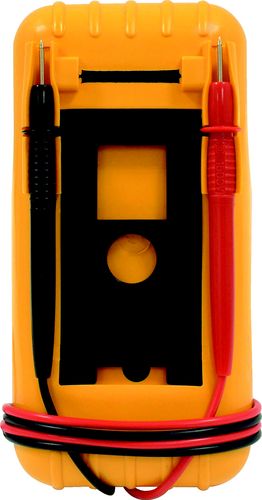

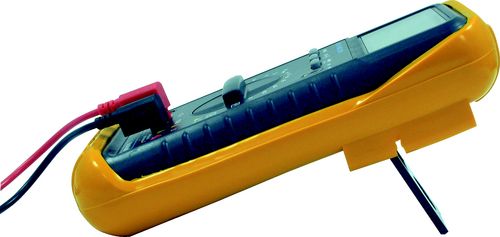

Removable rubber holster with integral lead holders. Features include continuity, diode, transistor hFE, auto ranging, reading/peak hold, bar graph, fused current range, overload indication, low battery indicator, tilt stand/hanger.
Voltage max: 700V AC, 1000V DC.
Current max: 10A AC/DC.
Resistance max: 32.6MW.
Capacitance max: 32.6mF.
Frequency max: 150kHz.
Safety rating: Cat III 600V, Cat II 1000V.
Warranty: 1 year.
3 in stock
SKU : EDI5162700K
Digital Multimeter – DAM668
DAM668
Removable rubber holster with integral lead holders. Features include continuity, diode, transistor hFE, auto ranging, reading/peak hold, bar graph, fused current range, overload indication, low battery indicator, tilt stand/hanger.
Voltage max: 700V AC, 1000V DC.
Current max: 10A AC/DC.
Resistance max: 32.6MW.
Capacitance max: 32.6mF.
Frequency max: 150kHz.
Safety rating: Cat III 600V, Cat II 1000V.
Warranty: 1 year.
Specification :
Brand : Edison
Model Number : DAM668
Overall Depth : 240
Overall Length : 170
Overall Weight : 0.7
Overall Width : 70
Supplier Part No. : MY68
UNSPSC Code : 41113630
WEEE Compliant : Yes
| Weight | 1 kg |
|---|
