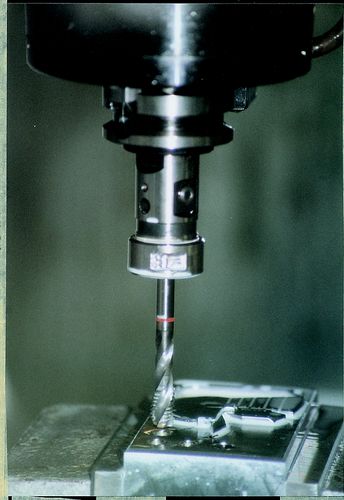

M12x1.75 WHITE 376 HSS-EV NIT BLIND TAP
HSS âWhite Ringâ Taps
Straight Flute – HSS-EV Nitride Finish
For blind holes. Plug/bottoming lead to
DIN form C (2 x P to 3 x P).
Tapping tolerance to 6HX.
Out of stock
SKU : SWT1854033W
HSS âWhite Ringâ Taps
Straight Flute – HSS-EV Nitride Finish
For blind holes. Plug/bottoming lead to
DIN form C (2 x P to 3 x P).
Tapping tolerance to 6HX.
Specification :
Brand : Swiss Tech
eCl@ss Code : 21010210
Overall Length (mm) : 110.0
Shank Diameter (mm) : 9.0
Size – Pitch (mm) : M12.0 x 1.75
Square A/F : 7.0
Thread Length : 24.0
UNSPSC Code : 27112806
Weight each : 61g
| Weight | 1 kg |
|---|
