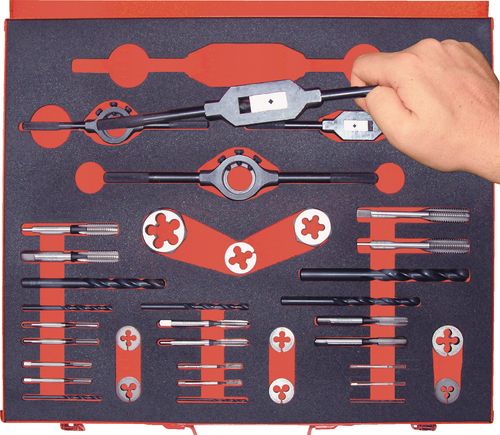

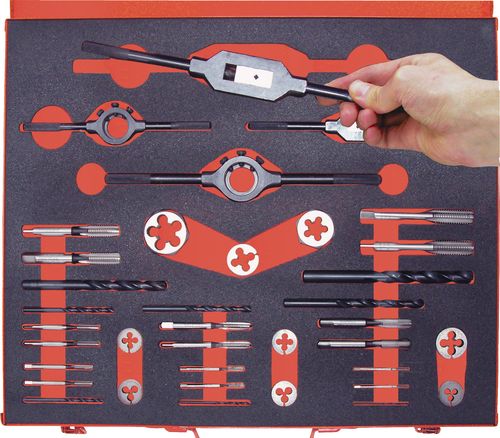

M2-M16 37-PCE HSS THREADING SET IN CASE
Rp6.200.000
Metric Threading Set
M2 – M16: HSS Ground Thread
Taper and Second Taps: M2 x 0.40, M3 x 0.50, M4 x 0.70, M5 x 0.80, M6 x 1.00, M8 x 1.25, M10 x 1.50 and M12 x 1.75. Manufactured to ISO 529.
Bar Type Tap Wrenches: 1/16â – 1/4â and 3/16â – 1/2â.
Tapping Drills to Suit: 1.6, 2.5, 3.3, 4.2, 5.0, 6.8, 8.5 and 10.2mm. Made to BS 328/DIN 338N.
13/16â O/D Split Dies: M2 x 0.40, M3 x 0.50, M4 x 0.70, M5 x 0.80 and M6 x 1.00.
1â O/D Split Dies: M8 x 1.25 and M10 x 1.50. Manufactured to BS 1127.
Diestocks: 13/16â O/D and 1â O/D. HSS Die Nuts: M12 x 1.75 and M16 x 2.00. Manufactured to BS 1127.
2 in stock
SKU : SHR0869990K
Metric Threading Set
M2 – M16: HSS Ground Thread
Taper and Second Taps: M2 x 0.40, M3 x 0.50, M4 x 0.70, M5 x 0.80, M6 x 1.00, M8 x 1.25, M10 x 1.50 and M12 x 1.75. Manufactured to ISO 529.
Bar Type Tap Wrenches: 1/16â – 1/4â and 3/16â – 1/2â.
Tapping Drills to Suit: 1.6, 2.5, 3.3, 4.2, 5.0, 6.8, 8.5 and 10.2mm. Made to BS 328/DIN 338N.
13/16â O/D Split Dies: M2 x 0.40, M3 x 0.50, M4 x 0.70, M5 x 0.80 and M6 x 1.00.
1â O/D Split Dies: M8 x 1.25 and M10 x 1.50. Manufactured to BS 1127.
Diestocks: 13/16â O/D and 1â O/D. HSS Die Nuts: M12 x 1.75 and M16 x 2.00. Manufactured to BS 1127.
Specification :
Brand : Sherwood
eCl@ss Code : 21010210
No. of Pieces : 37
Range : M2 – M16
UNSPSC Code : 27112806
| Weight | 1 kg |
|---|
