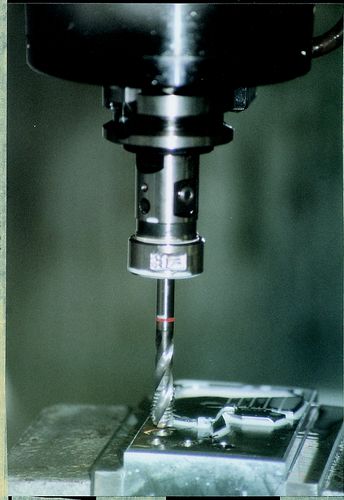

M6x1 WHITE 371 HSS-EV NIT THROUGH TAP
HSS âWhite Ringâ Taps
Manufactured to DIN 371/376
Suitable for the following Material Groups
Straight Flute – HSS-EV Nitride Finish
For through holes. Taper lead to
DIN form D (taper) (3.5 x P to 5 x P).
Tapping tolerance to 6HX.
Out of stock
SKU : SWT1853521W
HSS âWhite Ringâ Taps
Manufactured to DIN 371/376
Suitable for the following Material Groups
Straight Flute – HSS-EV Nitride Finish
For through holes. Taper lead to
DIN form D (taper) (3.5 x P to 5 x P).
Tapping tolerance to 6HX.
Specification :
Brand : Swiss Tech
eCl@ss Code : 21010210
Overall Length (mm) : 80.0
Shank Diameter (mm) : 6.0
Size – Pitch (mm) : M6.0 x 1.00
Square A/F : 4.9
Thread Length : 17.0
UNSPSC Code : 27112806
Weight each : 17g
| Weight | 1 kg |
|---|
