PCKNR 2525M12 EXTERNAL TOOLHOLDER
Rp1.519.000
Indexa Lever Lock External Toolholders – PCKN R/L
75° approach for negative 80° rhombic inserts.
Out of stock
SKU : IND1061860K
Indexa Lever Lock External Toolholders – PCKN R/L
75° approach for negative 80° rhombic inserts.

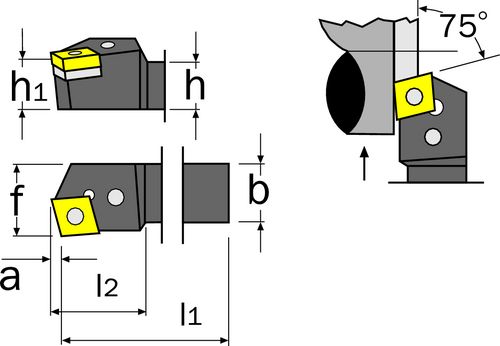

Specification :
Brand : Indexa
Designation PCKN…. : R 2525M 12
Dimensions a : 3.8
Dimensions b : 25
Dimensions f : 22
Dimensions h=h1 : 25
Dimensions l1 : 150
Dimensions l2 : 34
eCl@ss Code : 28039190
Overall Weight : 0.73
Supplier Part No. : 106-1860
UNSPSC Code : 23242106
Weight each : 760g
| Weight | 1 kg |
|---|
