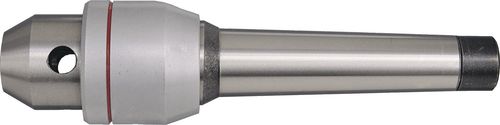

REVOLVING CENTRE 2MT STANDARD DUTY

Kennedy Standard Duty Revolving Centres

Manufactured from high alloy steel hardened and tempered then precision ground externally. Precision bearings are fitted as standard and the centres have a 60° point. Mounting Tapers are accurate to DIN228 Form A, Tolerance Class AT5.

Maximum runout:
No.1 to 4 taper: 0.005mm.
No.5 to 6 taper: 0.010mm.

2 in stock

SKU : KEN4881020K

Kennedy Standard Duty Revolving Centres

Manufactured from high alloy steel hardened and tempered then precision ground externally. Precision bearings are fitted as standard and the centres have a 60° point. Mounting Tapers are accurate to DIN228 Form A, Tolerance Class AT5.

Maximum runout:
No.1 to 4 taper: 0.005mm.
No.5 to 6 taper: 0.010mm.

Specification :
Axial Load (rpm) @100 (kgf) : 275
Axial Load (rpm) @3000 (kgf) : 60
Brand : Kennedy Industrial
eCl@ss Code : 23049190
Max rpm : 7000
Morse Taper : No.2
Overall Depth : 70
Overall Length : 152
Overall Weight : 0.43
Overall Width : 70
Radial Load (rpm) @100 (kgf) : 200
Radial Load (rpm) @max (kgf) : 55
UNSPSC Code : 23153013
Weight each : 0.43kg

Weight 1 kg
SKU: KEN4881020K Categories: , , ,
