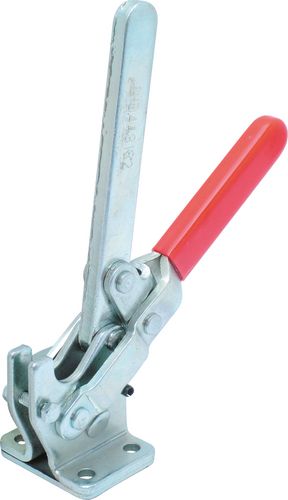

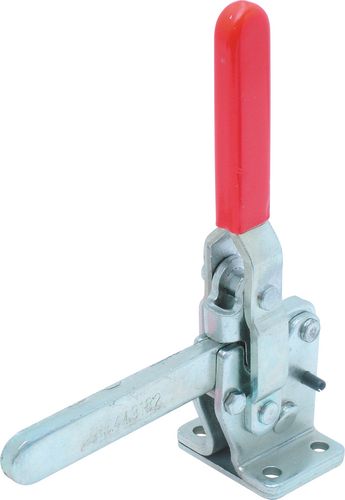

V450FS SOLID BAR VERTICAL CLAMP
Indexa Vertical Industrial Toggle Clamp – Fixed Spindle & Solid Bar Type
Fixed Spindle & Solid Bar Type
Designed to improve performance in fabrication and engineering clamping applications. The rapid clamping/unclamping made possible by the use of toggle clamps can greatly reduce machine/operator âdown-timeâ during all stages of production.
Clamping Capacity – the forces stated are the maximum loads that can be applied without causing permanent deformation. Due to leverage ratios, the holding capacity will be greatest at the point on the bar nearest to the handle of the clamp and forces stated have been achieved at this point.
Out of stock
SKU : IND4431820K
Indexa Vertical Industrial Toggle Clamp – Fixed Spindle & Solid Bar Type
Fixed Spindle & Solid Bar Type
Designed to improve performance in fabrication and engineering clamping applications. The rapid clamping/unclamping made possible by the use of toggle clamps can greatly reduce machine/operator âdown-timeâ during all stages of production.
Clamping Capacity – the forces stated are the maximum loads that can be applied without causing permanent deformation. Due to leverage ratios, the holding capacity will be greatest at the point on the bar nearest to the handle of the clamp and forces stated have been achieved at this point.
Specification :
Base Type : Flanged
Brand : Indexa
eCl@ss Code : 21020501
Holding Capacity : 450kg
Movement of Bar : 135°
Movement of Handle : 70°
Product Number : V450-FS
Supplied With : Solid Bar Hex Head Spindle ( 1/2″) and Bolt Retainer*
Supplier Part No. : V450FS
UNSPSC Code : 27112132
Weight each : 1250g
| Weight | 1 kg |
|---|
